10-30VDC Q40 Inductive Proximity Sensor Rectangular 360 Degree Sensing Face

Luo Shida Sensor (Dongguan) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

10-30VDC Q40 Inductive Proximity Sensor Rectangular 360 Degree Sensing Face

Brand Name : Luoshida

Model Number : Q4040PS-360

Certification : CE ROHS

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000PCS per month

Delivery Time : 8-12 work days

Packaging Details : Normal standard:individual package with labels and outside is normal brown box.

Usage : Position Sensor

Theory : Inductance Sensor

Material : plastic

Warranty : 1 Year

Output type : NPN PNP NO NC NO+NC

Voltage : 10-30VDC

Contact Now

10-30VDC Q40 360 Degree Sensing Face Rectangular Inductive Proximity Sensor Switch

Brief introduction about the sensor :
Series : Q40 Square Type Inductive proximity sensor
Size : Q40*40*118mm
Housing Material : ABS plastic
Mounting : shielded/Non-shielded
Sensing Distance Sn(mm): 15mm/20mm/25mm/40mm
Operating Voltage : DC 10-30V
Output function : NPN/PNP NO/NC
Protection Category : IP67

Characters of the sensor :

Q40 square type shorter Inductive Proximity Sensor
Size Q40 * 40 *118
Mounting

Non-shielded

Sensing Distance Sn(mm) 20mm / 30mm
Housing Material PBT
With or Without LED ● with LED
Operating Voltage 10-30VDC
Ripple <10%
No Load Current <10mA
Max.Load Current 150mA
Leakage Current <0.01mA
Voltage Drop <1.5V
Switching Frequency 500Hz / 300Hz 300Hz / 150Hz
Response Time 0.5ms / 1ms 0.5ms / 1ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <3.0%(Sr) / <5.0%(Sr) <3.0%(Sr) / <5.0%(Sr)
Protection Category IP67
Operating Temperature -25°C- +70°C
Temperature Drift <10%(Sr)
Short Circuit Protection YES
Overload Trip Point 180mA
EMC RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2
Material Active Face PBT
Connection D5 3*0.34
DC 3-wire 10-30V NPN NO Q40*NO-360
DC 3-wire 10-30V NPN NC Q40*NC-360
DC 3-wire 10-30V PNP NO Q40*PO-360
DC 3-wire 10-30V PNP NC Q40*PC-360
DC 3-wire 10-30V NPN NO+NC Q40*NS-360
DC 3-wire 10-30V PNP NO+NC Q40*PS-360

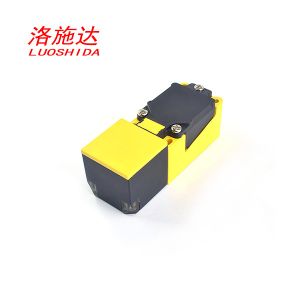

10-30VDC Q40 Inductive Proximity Sensor Rectangular 360 Degree Sensing Face

Friendly reminder about the sensor:
1.There are two types of proximity switches, flush and non-flush. If the mounting bracket is made of metal, the shell of the non-flush switch must be exposed to a certain length during installation. For flush installation, no exposure or only a small amount of exposure is required. If installed side by side, There must be a certain interval between the switches. The specific interval is subject to no interference after installation. If the mounting bracket is non-metal, then there is no installation limit on the distance to find the object.


2.The factory inspection standard of the inductive proximity switch is a 1mm thick square Fe37 iron sheet. The detection distance in actual application will vary with the material of the object to be tested.

Relevant information about the service :

Shipping ways :
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.

Payment term and delivery time :
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;


Delivery time :
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

After-sales services :
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the istallation of the parts. if you have any questions, please do not hesitate to contact us at any time.
